Description

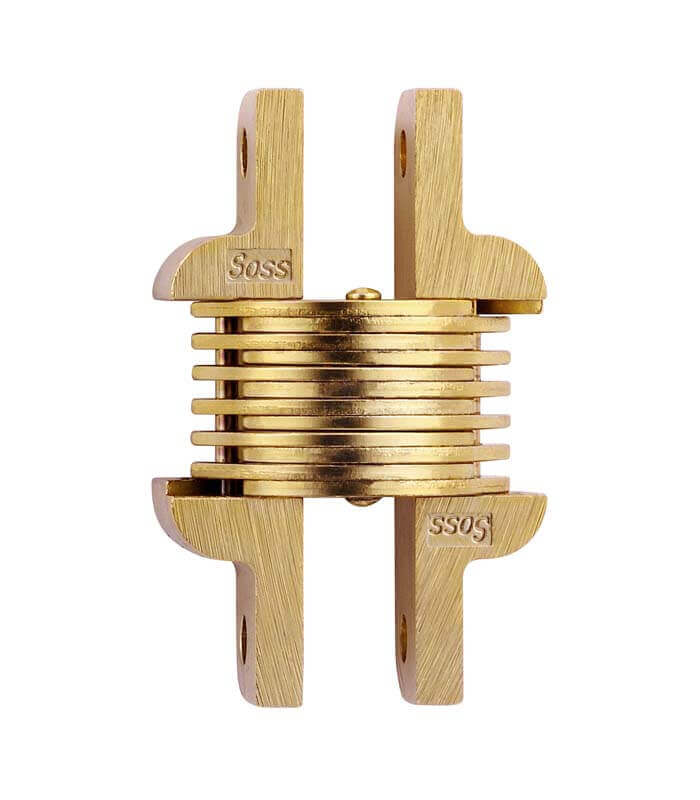

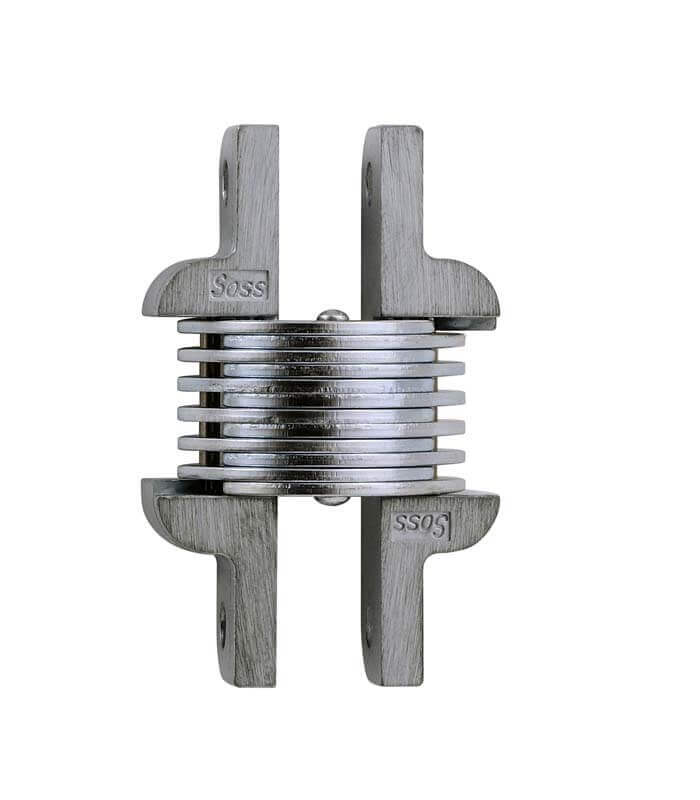

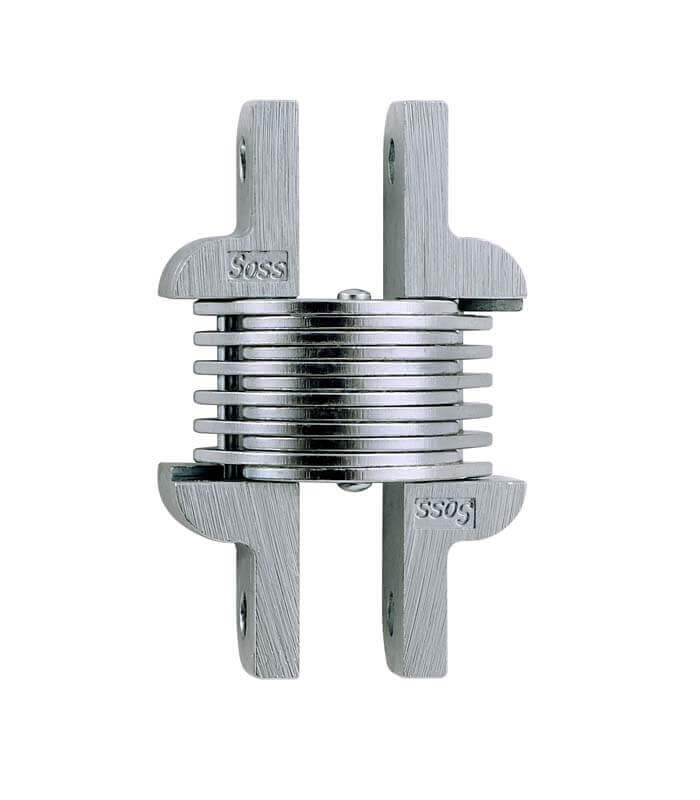

SOSS® Invisible Hinge model #106 is for use in metal applications. The model #106 is made of zinc and steel materials. This cabinet style hinge will provide superior appearance and durability. This special concealed surface mount SOSS® Invisible Hinge mounts on back of door and frame and requires no mortise. Hinge is visible from the back. The maximum door thickness is 5/64″.
Screws are not included.
For pricing & availability Contact us at 647-250-9882
Additional Information
| Application | Cabinet, Metal |
|---|---|
| Min. Material Thickness | NA |
| Fire Rating | No |
| Power Transfer | No |
| Closer | No |
| Counter Bored Screw Holes | No |
| Screws Included | None |
| Packaging | 2 / Bag = 1 Pair |
| Packages Per Container | 5 Pair |
| Price Per | Pair |

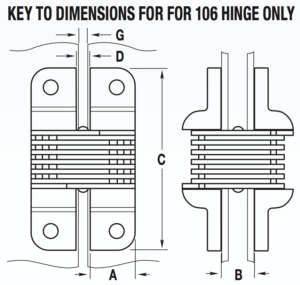

Dimensions
| A | 19⁄32″(15.08mm) |
| B | 7⁄16″(11.11mm) |
| C | 2-3⁄8″(60.33mm) |
| D | 13⁄64″(5.16mm) |
| E | N/A |
| F | N/A |
| G | 19/32″ (15.08mm) |
| H | N/A |
| Hinge Weight | .18 lb. |
